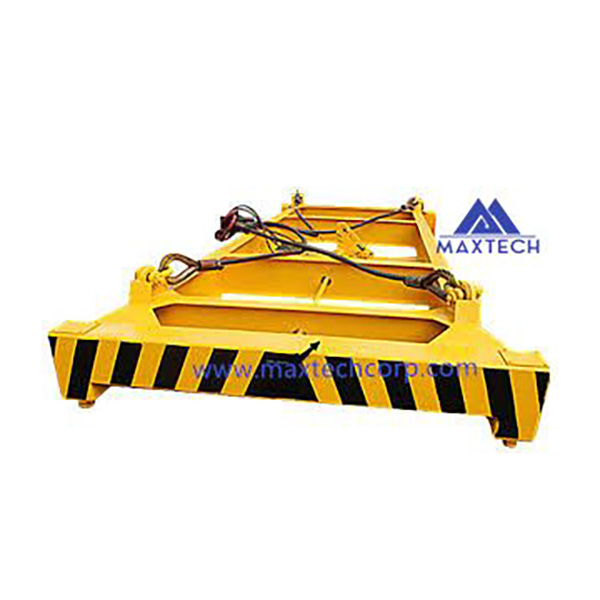

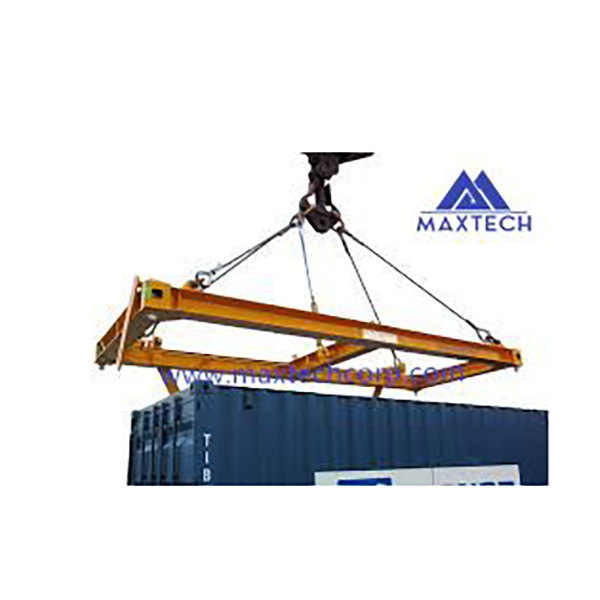

Factory Directly Supply Container Spreader
20/40ft Semi-automatic container spreader advantage & customers' comment
1. Light dead weight.
2. Operation is simple and convenient.
3. Design of the spreader is suitable for port, railway and yard.
4. Reliable with simple locking/unlocking mechanism and all four twist lock activated throught one manually operated handle.
5. The corners of the spreader has been installed the guide plates, facilitate fixed the container.
Technical Parameters
| Lifting Capacity (t) | 32T (under spreader) | ||
| Dead Weight (t) | 2T | ||
| Wire Rope Spec. (mm) | DIA32MM X4 pcs | ||
| with minimum breaking strength of 1770N/mm2 | |||
| Rotatable Mode | ISO standard fixup rotatable mode | ||
| Rotatable Device | Semi-flexible cable | ||
| Flexible Cable Journey | ~1.25m | ||
| Allowed Load Eccentricity | Length 1.25M width 0.26M | ||
| Temperature | temperature： 一20° — 50° | ||
| Length of Spreader (mm) | ~6054 | ||
| Width of Spreader (mm) | ~2438 | ||
| Fit Crane’s Type | A crane which have single hoist framework | ||
| Fit | 20′container | ||
3D Drawing
MAXTECH provides
. Designs meets customer specification.
2. Fast spare-parts delivery across the world.
3. Acceptance testing including certfication such as BV, LRS, GL, DNV, ABS, and etc.
Quality - Safe & Reliable
We insurance the quality are safe and reliable
1.Self-own factory & Engineering designer
So that we can control each step of the production.
2.Six Sigma Quality Control Policy
Our factory production is according to the standard of Six Sigma.
3. 50+years of in fabrication of the container spreader
The container spreader has high safety requirements. The container spreader in our factory has double protection, electronic protection and mechanical protection to ensure the safety of the container spreader.
More than 50 years of production also ensures safety
Innovation - patents
we have a lot of patents of the container spreader.
1. patent name : a container spreader positioning device , patent number: 13979517
2. patent name: a container spreader for port cranes to facilitate fixing containers, patent number: 14010625
3. patent name: a slewing mechanism capable of fine-tuning the angle of the container spreader ， patent number： 142341333
4. patent name: a container spreader with dynamically shiftable center of gravity， patent number：10997589.
...........
|
Container Spreaders |
||
| No. | Patent Name | Patent Number |
| 1 | A container spreader positioning device | 13979517 |
| 2 | A slewing mechanism capable of fine-tuning the angle of the container spreader | 14234133 |
| 3 | A container spreader whose center of gravity can be shifted in heavy state | 10997589 |
| 4 | A container spreader for port cranes to facilitate fixing containers | 14010625 |
| 5 | An anti-falling container spreader | 15069781 |
| 6 | Computer software copyright registration certificate -- Container spreader intelligent control platform | 2021SR0005145 |
