Hnyav-Duty Ship Deck Barge Crane: 35–45 Ton SWL rau Kev Hloov Chaw Muaj Kev Nyab Xeeb

Lub Crane Hnyav Rau Lub Nkoj Thauj Khoom: 35–45 Ton SWL rau Kev Thauj Mus Los Kom Muaj Kev Nyab Xeeb Duab Tshwj Xeeb

Kev Piav Qhia Luv:

Kev tuav khoom ntau lub hom phiaj rau Barge Crane

Zoo tagnrho rau cov khoom qhuav, cov thawv thiab cov khoom thauj loj.
Muaj peev xwm nqa tau zoo rau Deck Crane

Zoo rau 35 tonne SWL hauv hiav txwv qhib txog li 20 nautical mais,

thiab 45 tonne SWL hauv dej nyab, dej hauv av thiab chaw nres nkoj.
Cov khoom zoo tshaj plaws hauv Suav teb

Xyuas kom ruaj khov, tsis ua haujlwm tsawg thiab lub neej ua haujlwm ntev.
Neeg Hlau Nqa Khoom Hnyav

Kev kawm AI & Kev Ua Haujlwm Tus Kheej
Zoo meej rau kev ua haujlwm hauv chaw nres nkoj thiab ntug dej hiav txwv

Ib qho kev xaiv uas ntseeg tau rau kev hloov pauv khoom, kev thauj khoom thiab kev tshem tawm khoom ntawm hiav txwv thiab hauv chaw nres nkoj.

Xa email rau peb Rub Tawm Cov Ntaub Ntawv

Cov Khoom Qhia Txog Khoom

Kev Nug

Cov Cim Npe Khoom

Kev Taw Qhia Txog Khoom

MAXTECHLub nkoj Craneyog ib lub crane hnyav ua haujlwm siab plaub txoj hlua nrog lub peev xwm nqa tau siab tshaj plaws ntawm 35 tonnes hauv kev ua haujlwm ntawm 36 meters. Nrog lub winch loj dua lub peev xwm nqa tau tuaj yeem nce mus txog 45 t ntawm 32 m hauv kev ua haujlwm ntawm kev tuav.

Tsim los rau kev ua haujlwm ceev ceev tas mus li, cov MAXTECH barge cranes no muaj cov yam ntxwv tshwj xeeb rau cov xwm txheej hnyav thiab kev ua haujlwm hauv hiav txwv qhib. Qhov hnyav sib npaug txo qhov tig rov qab txhais tau tias muaj kev ruaj khov ntau dua ua rau muaj kev hloov pauv ntau txog li 30,000 tonnes ib hnub.

MAX-AI Kev Siv Tshuab Ntse

Cov Xwm Txheej Tseem Ceeb ntawm Daim Ntawv Thov

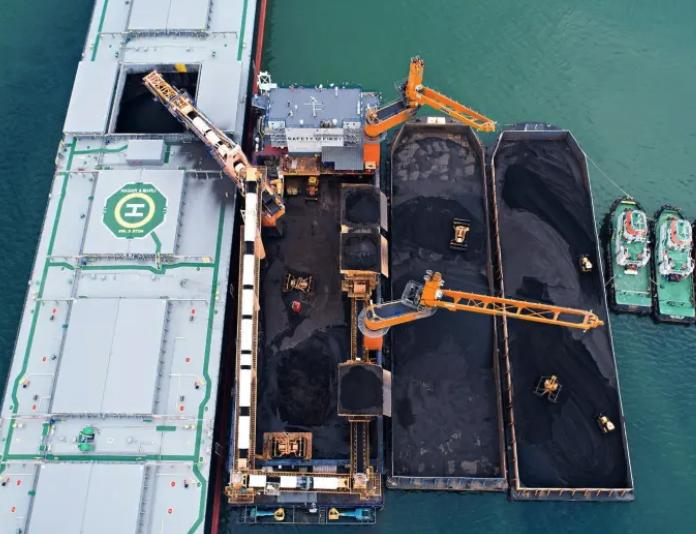

Kev Hloov Chaw Los Ntawm Nkoj Mus Rau Nkoj (STS):
Chaw Nres Nkoj Thauj Khoom & Tshem Tawm:
Kev tswj hwm kom meej kom tsis txhob muaj kev sib tsoo

nrog cov docks, cov nkoj thauj khoom thiab cov teeb meem.
Kev Ua Haujlwm Ua Ke Ua Pab Pawg:

Cov Haujlwm Tseem Ceeb

Kev Ua Haujlwm ywj pheej
Txoj Kev Kawm thiab Kev Txhim Kho AI
Kev Pom Kev Xam Xaj kom paub tseeb tias ua haujlwm tau zoo
Edge Computing Chip (Tsis muaj qhov yuav tsum tau muaj wifi siab)

MAXTECH Bulking Handling Mobile Crane tuaj yeem nruab nrog MAX-AI Smart System, uas muaj peb lub modules tseem ceeb uas ua kom muaj kev nyab xeeb, ua haujlwm tau zoo, thiab ntse.

Kev Saib Xyuas Hauv Online ntawm Cov Hlua Hlau

1. Lub Hom Phiaj Cheebtsam: Cov hlua khi thiab cov hlua nthuav dav

2. Cov Txuj Ci Tseem Ceeb: Kev Ntsuas Tsis Ua Rau Puas Tsuaj Los Ntawm Hluav Taws Xob (NDT)

3. Cov Haujlwm: Tshawb pom cov xov hlau sab hauv/sab nraud tawg, hnav, thiab xeb; qhia txog kev puas tsuaj thiab ceeb toom tsis siv neeg

4. Tus nqi: Hloov kev tshuaj xyuas tes, ua rau muaj kev saib xyuas tsis tu ncua, thiab ua kom muaj kev nyab xeeb ua haujlwm tas mus li rau koj lub crane grab

Slewing Bearing Hnav Tshawb Xyuas System

1. Lub Hom Phiaj Cheebtsam: Crane slewing bearing

2. Cov Txuj Ci Tseem Ceeb: Cov cuab yeej ntsuas qhov chaw siab + PLC kev tshuaj xyuas ntse

3. Kev Ua Haujlwm: Kev ntsuas lub sijhawm tiag tiag ntawm kev sib haum xeeb ntawm cov kabmob (hnav); kev suav qhov sib txawv ntawm kev hnav tsis siv neeg nrog lub tswb ceeb toom tawm ntawm qhov txwv

4. Tus nqi: Tiv thaiv kev puas tsuaj ntawm lub bearing tam sim ntawd, hloov lub sijhawm tsis ua haujlwm uas tsis tau npaj tseg mus rau kev saib xyuas raws sijhawm rau koj lub barge crane

Tiv Thaiv Kev Co thiab Kev Tso Chaw Tseeb

1. Kev Tswj Xyuas Kev Sib Tw: Kev ua kom lub zog ntawm kev sib tw thaum lub sijhawm slewing thiab luffing

2. Hom Kev Tso Chaw Zoo: Txo qhov ceev rau qhov chaw thauj khoom kom meej

3. Kev Pab: Kev voj voog sai dua, kev ua haujlwm muaj kev nyab xeeb dua, txo kev puas tsuaj rau khoom thauj

Cov Ntawv Pov Thawj

Lub MAXTECH Mobile Harbour Crane yog tsim, tsim khoom, thiab sim ua raws li cov cai ntawm lub koom haum thoob ntiaj teb. Daim ntawv pov thawj tuaj yeem tau txais los ntawm:

Cov Koom Haum Kev Faib Tawm: BV, CCS, ABS, NK, KR, LR, thiab lwm yam.

Daim ntawv pov thawj ntawm pawg neeg hauv zej zog

Kev Xeem thiab Daim Ntawv Pov ThawjUa ntej tawm hauv lub Hoobkas, cov khoom siv yuav tsum tau dhau qhov kev sim nruj, suav nrog kev sim ua haujlwm (kev tsa, luffing, thiab slewing txav nrog cov khoom thauj thiab cov khoom thauj ntau dhau), kev lees paub nres thaum muaj xwm txheej ceev, kev sim tso tawm ntawm tes, kev lees paub qhov txwv hloov (nyob rau hauv tsis muaj - cov xwm txheej thauj khoom), thiab kev ntsuas kev tiv thaiv rwb thaiv tsev. Cov ntaub ntawv xeem ntawm txhua yam khoom yuav raug xa mus rau cov neeg siv kom ntseeg tau tias cov khoom ua haujlwm zoo.Cov Ntawv Pov Thawj ntawm Lub Tuam Txhab

ISO 9001: 2015 - Kev Tswj Xyuas Zoo

ISO 45001: 2018 - Kev Tswj Xyuas Kev Noj Qab Haus Huv thiab Kev Nyab Xeeb Hauv Chaw Ua Haujlwm

Daim Ntawv Pov Thawj Hoobkas BV - Cov txheej txheem tsim khoom ua raws li cov qauv thoob ntiaj teb

Txog MAXTECH

MAXTECH mob siab rau kev muab cov kev daws teeb meem ntse, ua haujlwm tau zoo rau kev lag luam maritime thiab chaw nres nkoj thoob ntiaj teb. Nrog ntau xyoo ntawm kev txawj ntse engineering thiab kev tsim kho tshiab tas mus li, peb cov barge cranes tau txais kev ntseeg siab los ntawm cov neeg siv khoom thoob ntiaj teb rau kev tuav cov khoom loj, kev thauj mus los hauv hiav txwv, thiab kev ua haujlwm chaw nres nkoj.
