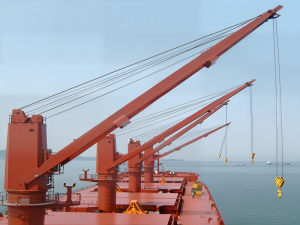

Barge Cranes nrog MAX-AI: Cov Khoom Siv Tseem Ceeb rau Kev Tsim Kho Marine

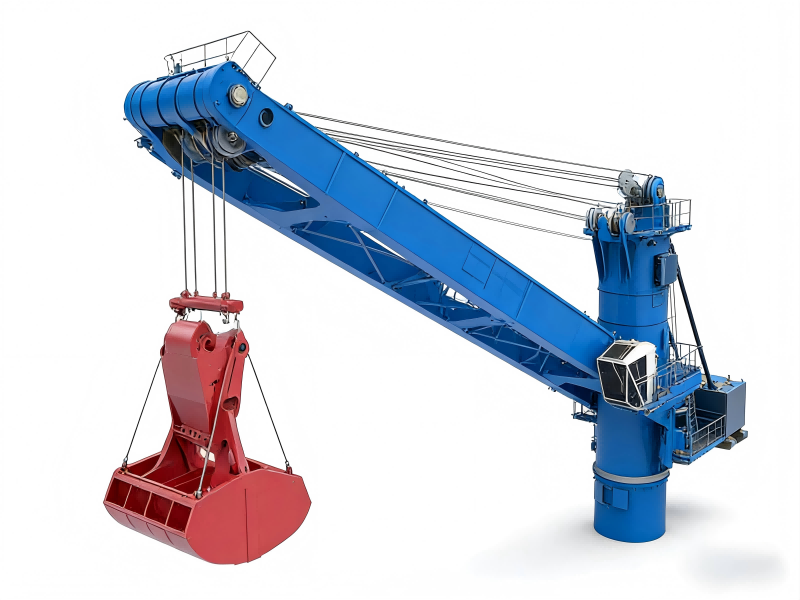

Lub MAXTECH Grab Barge Crane yog ib qho kev daws teeb meem tshwj xeeb uas tau tsim los rau kev thauj khoom loj uas muaj zog heev uas qhov kev ua tau zoo ntawm kev tuav yog qhov tseem ceeb tshaj plaws. Tsis zoo li cov cranes ib txwm siv rau kev siv qee zaus, lub crane tuav no tau kho kom zoo txij thaum pib mus txog rau kev ua haujlwm tas mus li, xa cov khoom tsim tau zoo dua hauv cov chaw xav tau tshaj plaws.
Txawm hais tias muaj ntau yam txaus rau cov ntawv thov barge thiab shipboard, MAXTECH Grab Crane txawv nws tus kheej los ntawm nws txoj kev tsim qauv zoo tshaj plaws - muaj cov winches kaw zoo dua, cov qauv txhawb nqa rau cov khoom cuam tshuam, thiab cov algorithms tswj tshwj xeeb uas ua kom lub voj voog ua haujlwm zoo tshaj plaws.
Kev Ntsuas Txuj Ci
Cov Lus Qhia Txog Kev Siv (Qauv MAX-BGC 200)
| Cov Qauv | Cov Lus Qhia Tshwj Xeeb |
| Muaj Peev Xwm Ntau Tshaj (Kev Ua Haujlwm Tuav) | 45 t @ 32 m |
| Muaj Peev Xwm Ntau Tshaj (Kev Ua Haujlwm Hook) | 60 t @ 32 m |
| Ua Haujlwm Radius (Min. / Max.) | 9 m – 36 m |
| Cov voj voog rub ib teev | Txog li 45 |
| Kev Hloov Nyiaj Txhua Hnub Siab Tshaj Plaws | 30,000 tons |
| Qhov Hnyav ntawm Barge Crane (tsis suav nrog lub qhov) | Kwv yees li ntawm 122 t - 125 t |
| Kub Ua Haujlwm Ib puag ncig | -25°C txog +45°C |
| Qhov siab tshaj plaws ntawm av noo | 93% |
| Qhov Ceev Cua Siab Tshaj Plaws (Ua Haujlwm / Nres Tsheb) | 20 m/s / 63 m/s |
| Siab Tshaj Plaws / Qhov Ntev (Tuav ≤45 t) | 3° / 2° |
| Lub Cev Tsav Tsheb | Hluav Taws Xob - Peb Theem Squirrel Cage |
| Chav Kawm Tiv Thaiv | IP54 / IP55 |
| Chav Kawm Rwb Thaiv Tsev | F |
MAX-AI Smart Technology rau Barge Cranes
MAXTECH Grab Crane tuaj yeem nruab nrog MAX-AI Smart System, uas muaj peb lub modules tseem ceeb uas ua kom muaj kev nyab xeeb, ua haujlwm tau zoo, thiab ntse.
Kev Saib Xyuas Hauv Online ntawm Cov Hlua Hlau
1. Lub Cheebtsam Cheebtsam: Hoisting thiab tuav cov hlua
2. Cov Txuj Ci Tseem Ceeb: Kev Ntsuas Tsis Ua Rau Puas Tsuaj Los Ntawm Hluav Taws Xob (NDT)
3. Cov Haujlwm: Tshawb pom cov xov hlau sab hauv/sab nraud tawg, hnav, thiab xeb; qhia txog kev puas tsuaj thiab ceeb toom tsis siv neeg
4. Tus nqi: Hloov kev tshuaj xyuas tes, ua rau muaj kev saib xyuas tsis tu ncua, thiab ua kom muaj kev nyab xeeb ua haujlwm tas mus li rau koj lub crane grab
Slewing Bearing Hnav Tshawb Xyuas System
1. Lub Hom Phiaj Cheebtsam: Crane slewing bearing
2. Cov Txuj Ci Tseem Ceeb: Cov cuab yeej ntsuas qhov chaw siab + PLC kev tshuaj xyuas ntse
3. Kev Ua Haujlwm: Kev ntsuas lub sijhawm tiag tiag ntawm kev sib haum xeeb ntawm cov kabmob (hnav); kev suav qhov sib txawv ntawm kev hnav tsis siv neeg nrog lub tswb ceeb toom tawm ntawm qhov txwv
4. Tus nqi: Tiv thaiv kev puas tsuaj ntawm lub bearing tam sim ntawd, hloov lub sijhawm tsis ua haujlwm uas tsis tau npaj tseg mus rau kev saib xyuas raws sijhawm rau koj lub barge crane
Kev Txhim Kho Txoj Kev Tiv Thaiv Kev Tawm Tsam & Kev Txhim Kho Txoj Kev Txawj Ntse
1. Daim Ntawv Thov: Kev xa nkoj mus rau nkoj, kev tshem tawm chaw nres nkoj los ntawm cov nkoj me, kev ua kom tiav dej hiav txwv
2. Dynamic Anti-Sway: Tshem tawm qhov kev co ntawm lub zog hauv lub sijhawm tiag tiag los ntawm cov algorithms siab heev
3. Kev Npaj Txoj Kev AI: Ua kom zoo dua qhov kev taug kev raws li cov ntaub ntawv keeb kwm
4. Kev Pom Kev: Txheeb xyuas cov chaw tuav nkoj thiab cov teeb meem kom pab tau qhov chaw tseeb
5. Kev suav ntug: Kev ua cov ntaub ntawv hauv zos ua kom muaj kev teb sai nrog kev vam khom tsawg ntawm network
6. Kev Tiv Thaiv Kev Nyab Xeeb: Kev tiv thaiv overload / over-moment, kev sib tsoo ntse, thiab kev ua haujlwm pabcuam
