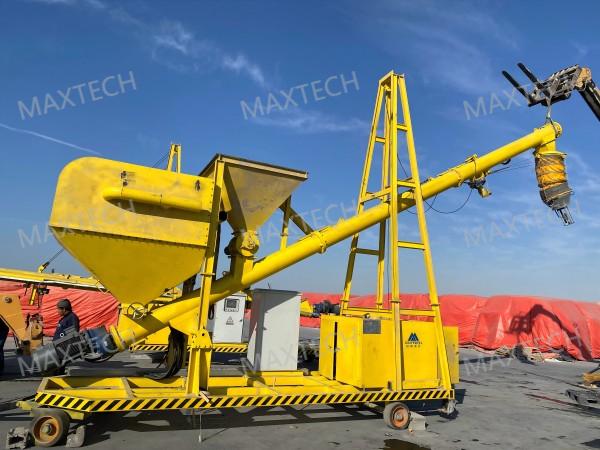

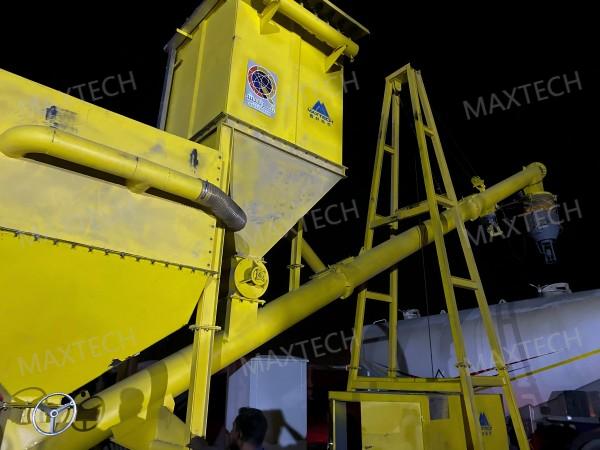

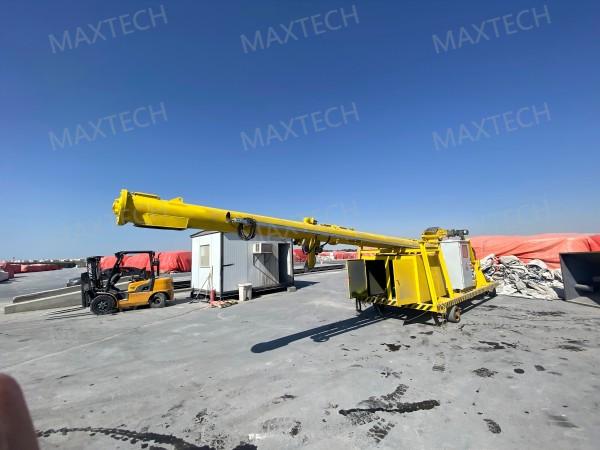

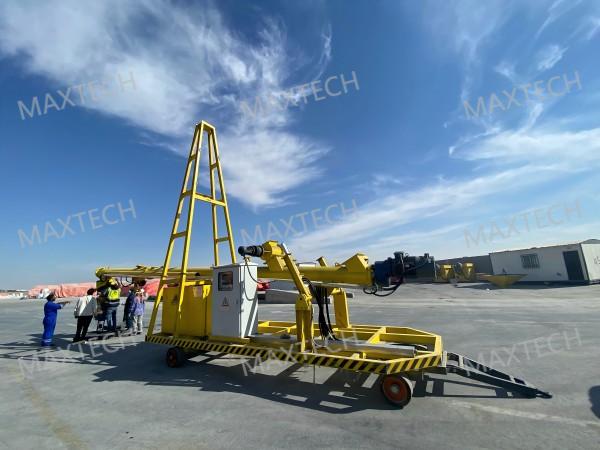

On 23rd January, MAXTECH's Tire Screw Conveyor is undergoing intense on - site installation work in Saudi Arabia. The engineering team of MAXTECH has arrived at the installation site in advance to provide comprehensive technical support for installation to ensure the smooth commissioning of the equipment.
In recent years, MAXTECH's conveyor products have achieved remarkable sales results in overseas markets due to our excellent performance and reliable quality. Many units of equipment have been successfully delivered overseas and have won wide recognition from customers.
The Maxtech - 60 Tire Screw Conveyor being installed in Saudi Arabia has the following outstanding performance and parameters:
1. Cargo handling efficiency: Up to 60 tons per hour, efficiently completing material handling tasks.
2. Cargo type: Suitable for white cement powder (cement clinker), with wide material adaptability.
3. Specific weight of material: Can handle materials with a specific weight of 1.25 - 1.4 tons per cubic meter.
4. Loading clearance height: ≥4.2 meters, meeting different loading requirements.
5. Attached bucket volume: ~ 2 m³, which can store a certain amount of materials and improve work continuity.
6. Attached bucket opening: 1.8 m×1.8 m, facilitating the entry and exit of materials.
7. Maximum tilt angle of screw conveyor: 30°, which can stably convey materials under a certain inclined condition.
8. Motor: With a power of ~ 7.5 kW, a voltage of 380 V, and a frequency of 50 Hz, providing stable power.
9. Inner diameter of the cylinder: 500 mm, ensuring the smoothness of the material - conveying channel.
10. Screw pitch: 400 mm, optimizing the conveying efficiency.
11. Rotate speed: 20 r/min, ensuring the uniform conveying of materials.
12. Outer shell: Made of 8 - mm - thick NM400 material, with good wear - resistance and firmness.
13. Blade: 12 - mm - thick NM400 material, enhancing the material - conveying capacity.
14. Dirt catcher: With a power of ~ 5.5 kW, a voltage of 380 V, and a frequency of 50 Hz, effectively reducing dust pollution.
15. Filter area: 40 square meters, ensuring high - efficiency dust - removal effect.
16. Handling total air volume: 3000 m³ /h, meeting the on - site ventilation and dust - removal requirements.
17. Winch: With a power of ~ 0.75 kW, a voltage of 380 V, and a frequency of 50 Hz, assisting the operation of the equipment.
18. Air compressor: With a power of ~ 1.5 kW, a voltage of 380 V, and a frequency of 50 Hz, providing compressed air support.
19. Hydraulic jack: Manually operated, facilitating the adjustment and fixation of the equipment.
20. Total machine weight: ~ 4.2 tons, with a compact and stable structure.
MAXTECH is always committed to providing high - quality conveying solutions to global customers. If you have demands for the Maxtech - 60 Tire Screw Conveyor or other products, please feel free to contact us via e-mial to sales@maxtechcorp.com. We will serve you wholeheartedly.
