MAXTECH has made a significant move in the marine industry by launching two high - performance winch products: the anchor windlass winches and the mooring winches, which aim to offer superior solutions for marine operations.

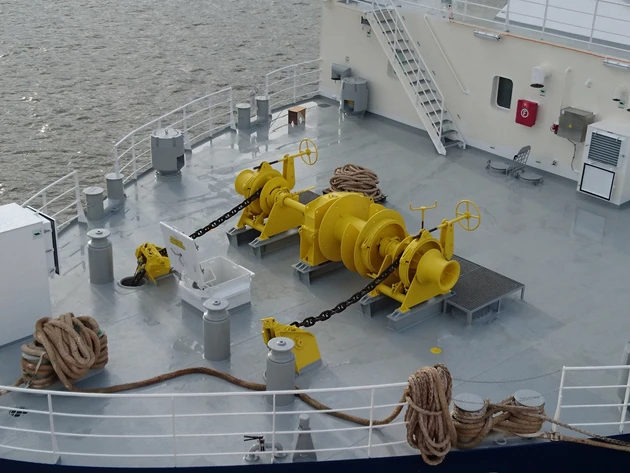

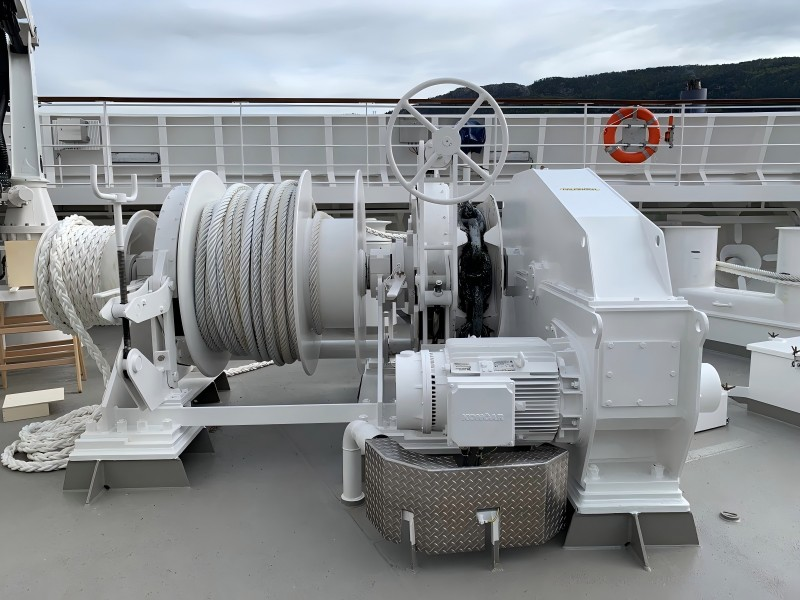

Anchor windlass winches
The anchor windlass winches are specifically designed for handling chains with a diameter of up to 160 mm. They come with a variety of drive options, including electric or hydraulic, and are equipped with warping heads. Constructed with fabricated steel, the gears are hardened to far exceed working load requirements. It features a clutched and braked drum, providing excellent corrosion resistance. The winches have a rugged design with heavy - duty split bronze bearings. The operating mechanism allows for both easy manual operation and remote control by hydraulic cylinders, and the brakes are easily adjustable. Moreover, all lubrication and inspection points are easily accessible, and special models without cable lifters can also be provided.
Options of anchor windlass winches
1. Auto tension/tension control
2. With or without mooring drum
3. With or without warping end
4. Remote control (wireless)
5. Chain length and/or speed measurement
6. Bridge operated anchor drop
7. Hydraulic operated brake

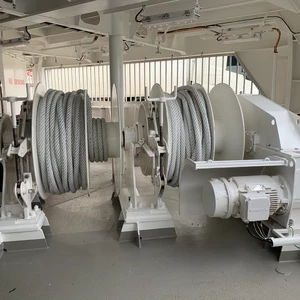

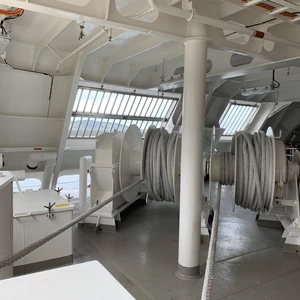

Mooring winches
The mooring winches, also featuring a rugged design and heavy - duty split bronze bearings, have an operating mechanism for brakes and clutches that is easy to operate, either manually or remotely. The brakes can be adjusted conveniently. With a pulling capacity ranging from 5 to 40 tonnes, these winches are available in single - drum, double - drum, and split - drum configurations.
Options of mooring winches
1. Auto tension/tension control
2. Hydraulic operated band brake
3. Hydraulic operated clutch
4. Light line speed
5. Remote control (wireless)
These two types of winches from MAXTECH, with their excellent performance and flexible configurations, are well - positioned to meet the diverse needs of different customers and facilitate efficient marine operations.
Post time: Jan-17-2025
