Oil transfer boom crane, which plays a crucial role in the marine transportation field, has become the focus of attention of numerous shipping enterprises due to its advanced working principle and remarkable advantages. Maxtech has launched the 2t@25m hydraulic oil transfer boom crane. We have optimized and innovated its performance and design, hoping to provide some assistance to the marine replenishment field and offer a new idea and solution for the operation of loading and unloading liquid media on various supply ships.

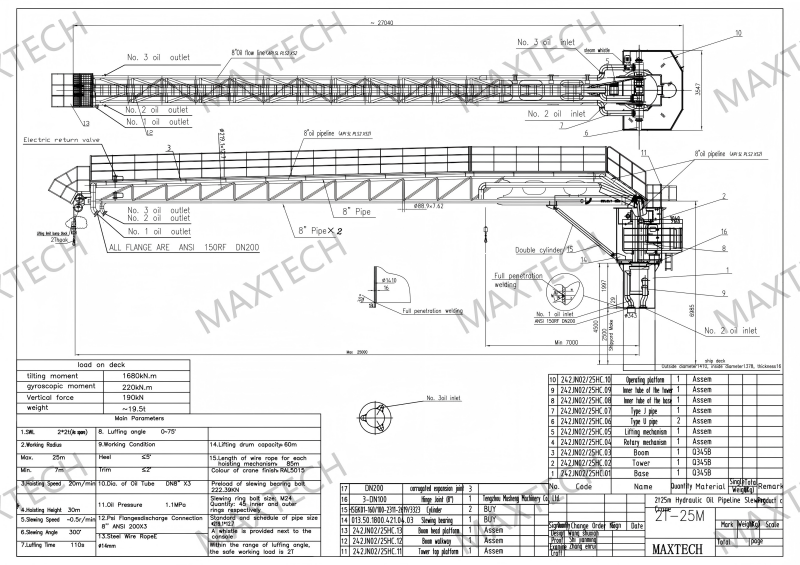

The flow boom crane mainly consists of parts such as the base device, the slewing device, and the boom containing the pipeline for transporting liquid media. Its working principle is based on hydraulic drive technology, with the coordinated operation of ingenious mechanical structures. The power source is an electric motor, which directly drives an oil pump. The oil pump converts mechanical energy into hydraulic energy and delivers high - pressure oil through the hydraulic system to each actuator.
In terms of the lifting action, the lifting winch is driven by an oil motor. The high - strength planetary gear reduction box drives the steel wire rope on the drum. When the oil motor operates, the drum winds or unwinds the steel wire rope, thus realizing the lifting and lowering of the cargo. The slewing action relies on the oil motor driving the planetary gear reduction box, which meshes directly with the inner gear ring of the slewing support, enabling the crane to rotate 360° and flexibly adjust the operating angle. The luffing action is completed by the oil cylinder. By extending and retracting the oil cylinder, the angle of the boom can be changed to adapt to different operating radii and height requirements.

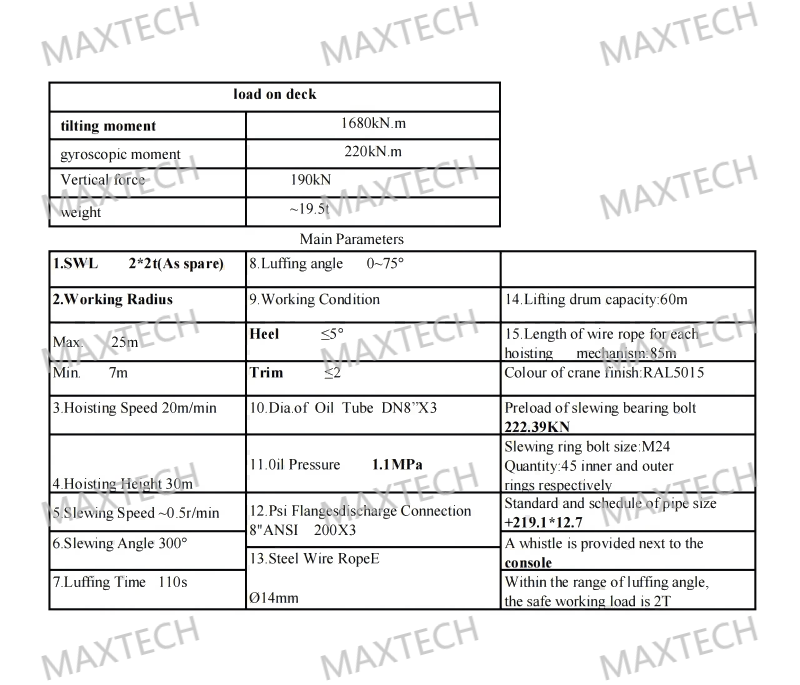

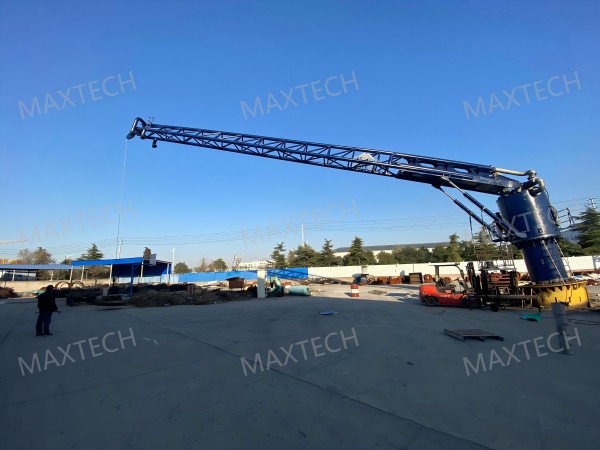

In actual operations, the oil transfer boom crane demonstrates many remarkable advantages. Judging from the performance parameters, for a certain model, MAXTECH 2t@25m flow boom marine crane. its safe working load can reach 2 tons, the maximum lifting height is 15 meters, and the working radius can vary flexibly between 7- 25 meters. The lifting speed reaches 20 m/min, the slewing speed is 0.4 r/ min. These efficient operation parameters greatly shorten the loading and unloading time and significantly improve the operation efficiency.

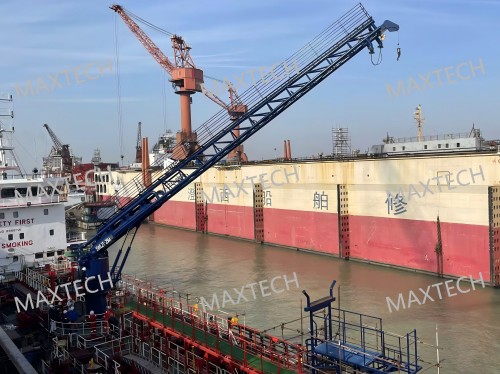

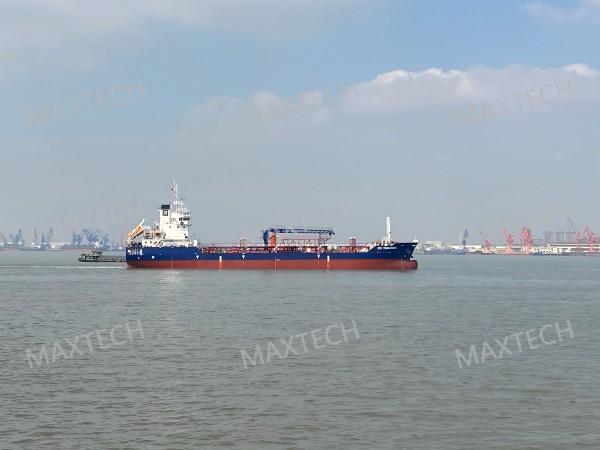

At present, this flow boom crane has been put into use in many shipping enterprises, and the actual application effect is remarkable. According to feedback from the using enterprises, after using this ship crane, the loading and unloading efficiency has increased by 40%, the incidence of safety accidents has dropped significantly, and the equipment maintenance cost has also decreased. With the continuous development of the marine transportation industry, this oil transfer boom crane is expected to become the mainstream equipment in the industry, promoting the entire industry to move towards a more efficient and safe direction.
